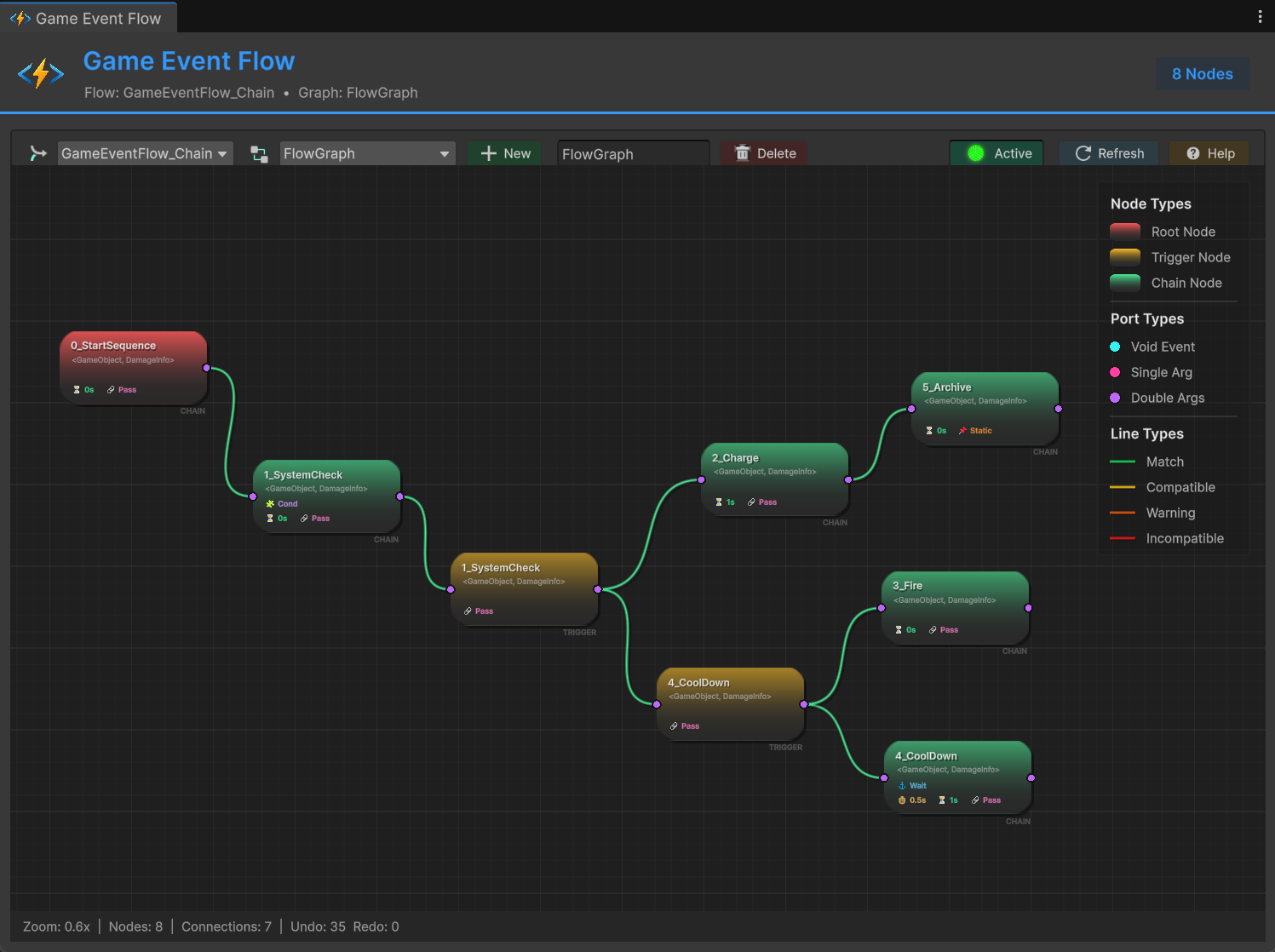

Flow Graph Editor

The Visual Flow Editor is the orchestrator of your game's logic. It is designed to solve the "Spaghetti Code" problem by visualizing complex event dependencies in a single, readable graph.

Instead of hunting through 10 different scripts to find out why a door opened, you simply look at the Flow Graph.

🕸️ Design Philosophy: Why a Graph?

Traditional Unity events are "Fire and Forget". This is great for decoupling, but terrible for debugging sequences. The Flow Graph introduces two powerful concepts to bridge this gap:

Concept	Nature	Behavior	Use Case
Trigger (Fan-Out)	Parallel	Non-blocking. One event fires multiple others simultaneously.	"OnPlayerDeath" -> Play Sound, Spawn Particles, Show UI.
Chain (Sequence)	Serial	Blocking. Events fire one after another, waiting for completion or delays.	"StartCutscene" -> (Wait 2s) -> "ShowDialog" -> (Wait Input) -> "EndCutscene".

By mixing these two nodes, you can build logic that is both decoupled AND structured.

---

🚀 Accessing the Editor

The Flow Graph Editor is designed as an extension of your event management workflow.

To access it:

1. Open the Game Event Editor
2. Click the Flow Graph button located in the main toolbar.

(This ensures you are always working within the correct context of your event library.)

---

🛠️ The Toolbar

Located at the top of the window, the toolbar manages your graph assets.

• Flow Asset Dropdown:
  • Allows you to switch between different Flow Graph Assets (e.g., switch from "Global_Flow" to "Level_1_Flow").
  • The graph content updates instantly upon switching.
• Help Button (?):
  • Opens the built-in Quick Reference Guide. Use this if you forget color codes or shortcuts.

Asset Management

Flow Graphs are stored as .asset sub-assets inside a Flow Container. You should create separate graphs for different game systems to keep logic clean.

---

🖱️ Navigation & Controls

The editor features a zoomable, pannable infinite canvas designed for large-scale logic.

Operation Help

To view the complete list of operations and configurations, please click on Help and open the GameEventHelpWindow window to view it.

Canvas Interaction

Action	Control	Description
Pan View	Middle Mouse Drag	Move around the infinite canvas.
Zoom	Scroll Wheel	Zoom in/out (centered on your mouse cursor).
Context Menu	Right Click	Open the menu to add new nodes (Root/Trigger/Chain) or Groups.

Selection & Manipulation

Action	Control	Description
Select	Left Click	Select a single node, group, or connection.
Multi-Select	Box Drag	Click and drag on empty space to select multiple items.
Toggle Select	Ctrl/Shift + Click	Add or remove individual items from the current selection.
Move	Left Drag	Move selected nodes. Groups automatically resize to fit members.
Edit Node	Double Click	Opens the Node Configuration window for detailed setup.

Connection Wiring

Action	Control	Description
Create Connection	Drag Output Port	Drag from a node's Right (Output) port to another node's Left (Input) port.
Re-route	Drag Input Port	Drag an existing connection away from its Input port to connect it somewhere else.
Delete Connection	Click + Delete	Select a connection line and press Delete (or Right-Click > Delete).

Keyboard Shortcuts

• Ctrl + A: Select All nodes.
• Ctrl + Z: Undo (Supports up to 50 steps history).
• Ctrl + Y / Ctrl + Shift + Z: Redo.
• Delete: Remove selected nodes or groups (keeps children nodes).
• Shift + Delete: Cascade Delete. Removes the selected group AND all nodes inside it.
• Escape: Clear selection or cancel current drag operation.

---

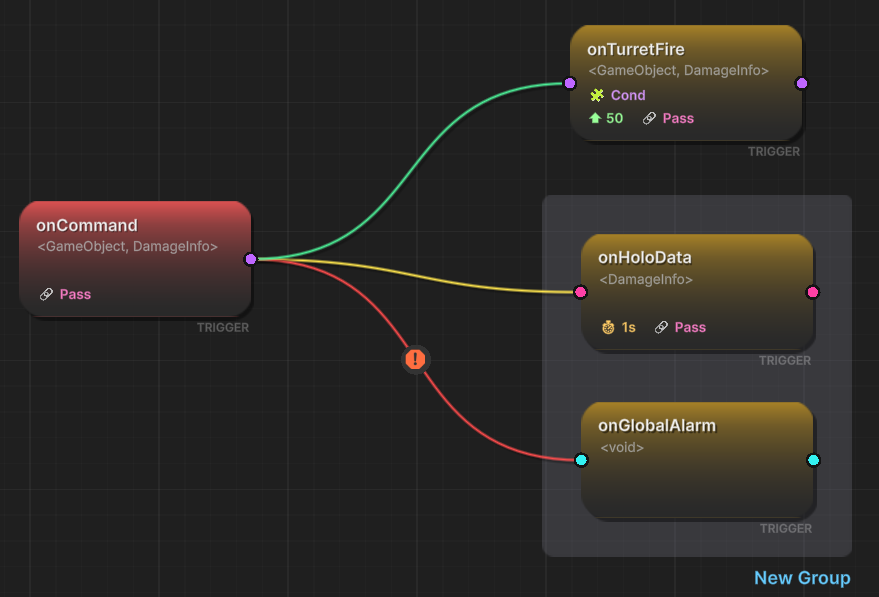

📁 Grouping System

To keep large graphs tidy, use Groups.

• Create: Select multiple nodes -> Right Click -> Create Group from Selection.
• Rename: Double-click the group header title.
• Constraint: A node can only belong to one group at a time.
• Behavior: Dragging a group moves all its members.

Pro Workflow

Use Shift + Box Select to add nodes to an existing selection, then create a group to quickly organize a messy graph section.
