Creating Events Wizard

The Game Event Creator (Wizard) is a specialized window designed for the rapid, batch-creation of event assets. It handles the heavy lifting of generating C# classes, compiling them, and creating the ScriptableObject assets in one go.

🚀 Accessing the Wizard

You can only open the Creator window from the Game Event Editor.

Click the green + New Event button in the top corner.

---

🏗️ The Creator Interface

The window is designed for speed. It allows you to queue up multiple events of different types and build them all at once.

Key Zones

• A. Event Mode Tabs: Switch between the three event archetypes (Void, Single, Sender).
• B. Configuration Area: Select types and configure the event before adding it.
• C. The Queue: A list of pending events waiting to be created. You can rename them or assign categories here.
• D. Status Bar: Top-right shows the total number of queued events (e.g., "7 Queued Total").

---

🎭 The Three Event Modes

Choose the mode that fits your architectural need.

1. Parameterless

Type: GameEvent (Void)

This is the simplest and most common event type. It carries no data, only a signal.

Best For:

• UI Triggers: OnPauseButtonClick, OnMenuOpen.
• Global States: OnGameStart, OnLevelComplete.
• Simple Actions: OnJump, OnFire.

How to Add:

Simply click Add Event. Since there are no types to configure, it immediately adds a generic event to the queue. You can rename it in the queue list.

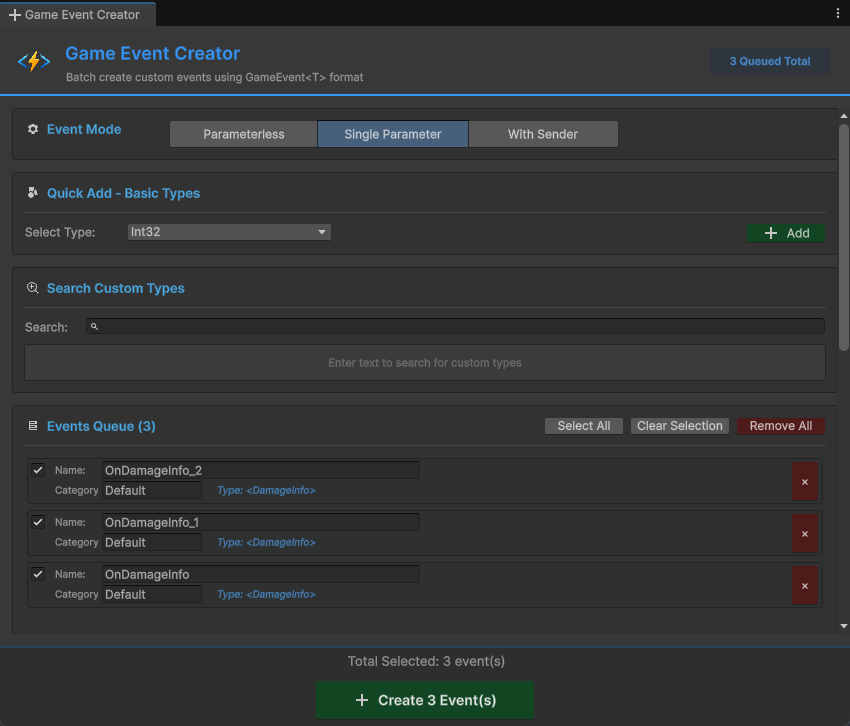

2. Single Parameter

Type: GameEvent<T>

Carries a single payload of data. Supports all built-in Unity types and your custom serializable classes.

Best For:

• Value Changes: OnHealthChanged(float), OnScoreUpdated(int).
• State Updates: OnGameStateChanged(GameStateEnum).
• Object Spawning: OnEnemySpawned(GameObject).

How to Add:

1. Basic Types: Select from the dropdown (e.g., Int32, Vector3, GameObject).
2. Custom Types: Use the Search bar to find any class in your project marked with [System.Serializable].
3. Click + Add to push it to the queue.

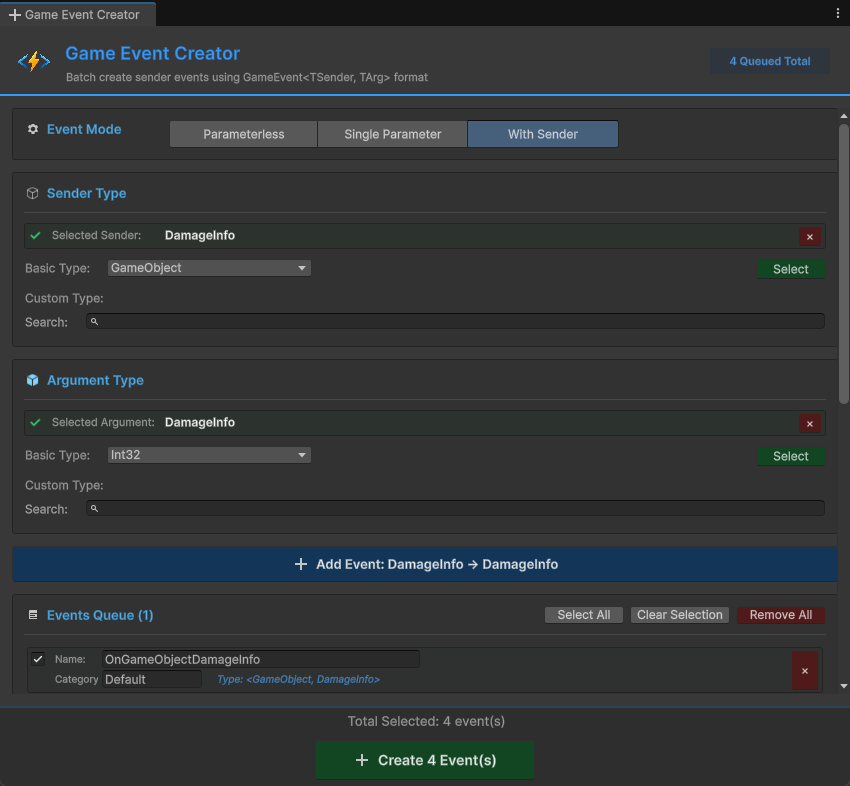

3. With Sender

Type: GameEvent<TSender, TArgs>

Carries both the Source (Who fired it?) and the Context (What happened?).

Best For:

• Complex Interactions: OnDamageTaken(GameObject victim, DamageInfo info).
• Inventory: OnItemUsed(PlayerController player, ItemID item).

Best Practice:

While this technically accepts any two types, we strongly recommend semantic consistency:

• TSender: The "Actor" (e.g., GameObject, PlayerController).
• TArgs: The "Payload" (e.g., float, struct).

How to Add:

1. Select the Sender Type (Who).
2. Select the Argument Type (What).
3. Click + Add Event to push the pair to the queue.

---

📦 Batch Creation Workflow

The power of this window lies in its Batch Queue. You don't need to create events one by one.

1. Queue 'em up: Switch between tabs and add as many events as you need. For example:
   • Add 2 <Void> events.
   • Switch to Single, add 3 <Damage> events.
   • Switch to Sender, add 1 <GameObject,Damage> event.
2. Review: Look at the Events Queue section at the bottom.
   • Rename: Give them meaningful names (e.g., change NewEvent to OnGameWin).
   • Categorize: Set a category (e.g., "Combat", "UI") for easier filtering later.
3. Execute: Click the big green + Create 7 Event(s) button at the bottom.

---

⚙️ The Automation Pipeline (Critical)

When you click "Create", the system performs a complex sequence of operations. It is important to understand this flow.

1. Code Generation Analysis

The system checks if the generic class (e.g., IntGameEvent) already exists in your project.

• If YES: It skips to Asset Creation immediately.
• If NO: It triggers the Code Generator to write the new C# class file to TinyGiantsData/CodeGen/.

2. Compilation Wait

If new code was generated, Unity MUST recompile before that code can be used.

• You will see a progress bar.
• The Editor might freeze briefly or show the Unity compilation spinner.

3. Asset Creation & Registration

Once compiled, the system:

1. Creates the .asset file (ScriptableObject) in the database folder.
2. Assigns a unique GUID.
3. Registers it to the active Database.

Do Not Interrupt

If the system is generating code and triggering a recompile, please wait. Do not force quit Unity or modify scripts until the process is complete and the new event appears in the list.

Pro Tip: Pre-Generation

If you know you will need Int, Float, and Vector3 events, you can pre-generate these types using the Code Generation Tools. This makes the creation process instant, as the Wizard can skip the compilation step.
