02 Basic Types: Passing Data with Events

📍 Demo Info

• Scene Preview



• Scene Path

  Assets/TinyGiants/GameEventSystem/Demo/02_BasicTypesEvent/02_BasicTypesEvent.unity

  Goal

  To demonstrate the Generic Event System, which allows passing standard C# and Unity types (String, Vector3, GameObject, Material) as arguments without writing custom event classes.

---

📝 Description

Beyond Void Events While void events are great for simple signals, most games need to pass data: "How much damage?", "Which item?", "Where to spawn?".

This demo showcases 4 different data types being passed dynamically:

1. String: Sends text to update a UI label.
2. Vector3: Sends coordinates to move a 3D object.
3. GameObject: Sends a Prefab reference to be spawned.
4. Material: Sends a Material asset to change an object's color.

The Magic: You do not need to create separate scripts like StringGameEvent or Vector3GameEvent. The system generates concrete classes for you automatically.

---

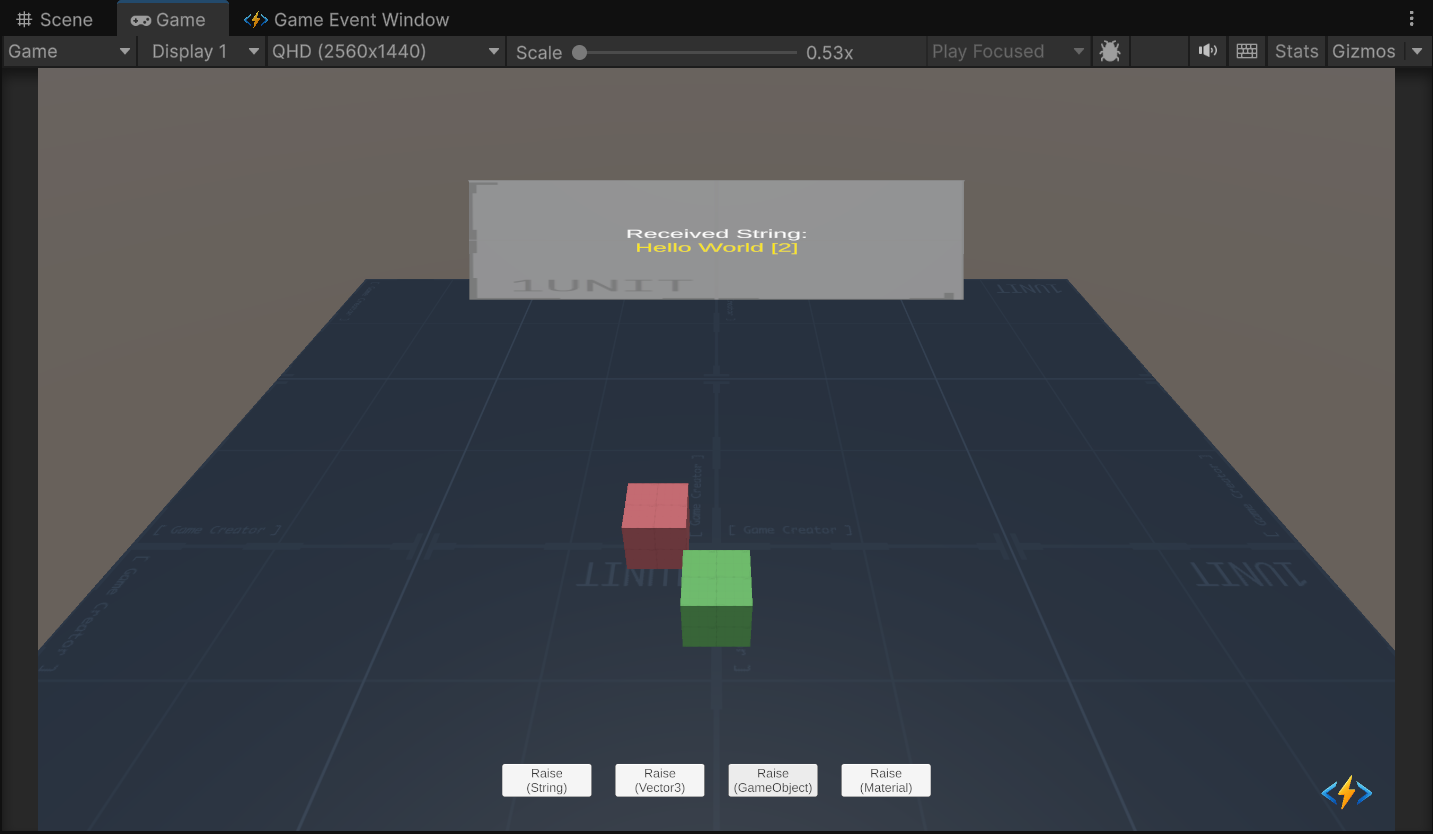

🛠️ Scene Setup

The scene contains interactable elements for each data type:

1. HoloDisplay (Text): Receives the String event.
2. Floating Cube: Receives the Vector3 event (Movement) and Material event (Color).
3. Spawn Point: Receives the GameObject event to spawn prefabs.
4. UI Buttons: Four buttons at the bottom to trigger each specific event type.

---

🎮 How to Test

1. Enter Play Mode.
2. Click "Raise (String)":
   • Observation: The holographic text updates with "Hello World [count]".
3. Click "Raise (Vector3)":
   • Observation: The cube teleports to a random position.
4. Click "Raise (GameObject)":
   • Observation: A random primitive (Cube/Sphere) is instantiated at the center.
5. Click "Raise (Material)":
   • Observation: The cube changes color (Red/Green/Blue/Yellow).

---

🔑 Key Configuration

1. Event Definition (Editor)

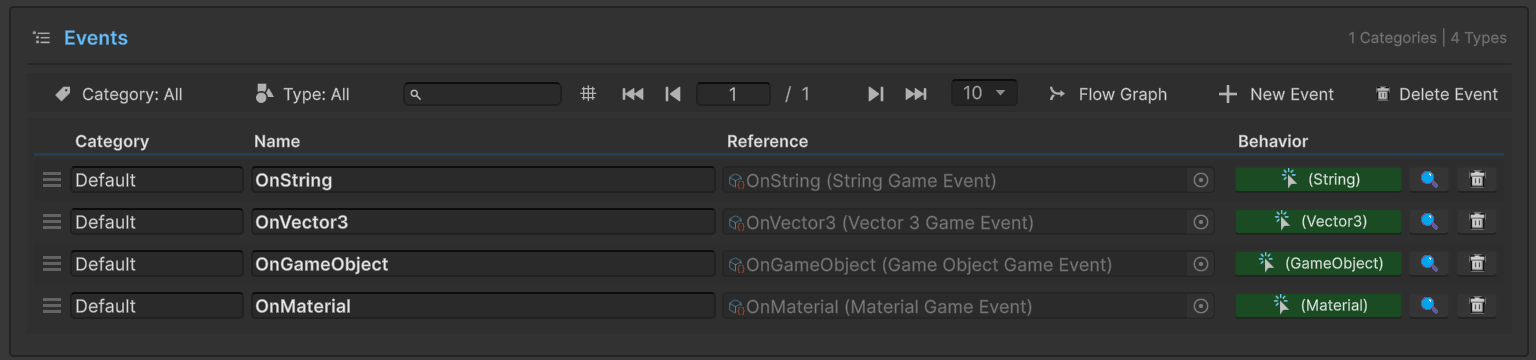

In the Game Event Editor, we have pre-created 4 events, each corresponding to a specific data type (String, Vector3, GameObject, Material).

2. Receiver Action Binding (Behavior)

Each event is configured to call a specific method on the BasicTypesEventReceiver script.

• OnString → binds to OnMessageReceived(string)
• OnVector3 → binds to OnMoveReceived(Vector3)
• Note: The system automatically enforces type safety, ensuring you can only bind methods with matching parameters.

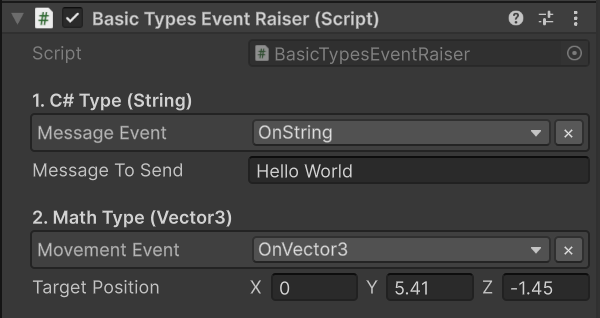

3. Raiser Event Assignment (Inspector)

Select the BasicTypesEventRaiser object. The script exposes 4 distinct slots. Notice how the Dropdown filters the list—you can only assign a GameEvent<string> asset to the "Message Event" slot.

---

💻 Code Walkthrough

1. The Sender (BasicTypesEventRaiser.cs)

Notice how GameEvent<T> is used for different types.

public class BasicTypesEventRaiser : MonoBehaviour
{
    // 1. String Event
    [GameEventDropdown] public GameEvent<string> messageEvent;
    public string messageToSend = "Hello World";

    // 2. Vector3 Event
    [GameEventDropdown] public GameEvent<Vector3> movementEvent;

    public void RaiseString()
    {
        // Raises event with a dynamic string argument
        messageEvent.Raise($"{messageToSend} [{_count++}]");
    }

    public void RaiseVector3()
    {
        // Calculates a random position and sends it
        Vector3 randomPos = new Vector3(Random.Range(-2f, 2f), Random.Range(0f, 3f), 0);
        movementEvent.Raise(randomPos);
    }
}

2. The Receiver (BasicTypesEventReceiver.cs)

The receiver methods must have matching parameters.

public class BasicTypesEventReceiver : MonoBehaviour
{
    [SerializeField] private TextMeshPro logText;
    [SerializeField] private Transform movingCube;

    // Signature Match: void (string)
    public void OnMessageReceived(string msg)
    {
        logText.text = $"Received: {msg}";
    }

    // Signature Match: void (Vector3)
    public void OnMoveReceived(Vector3 pos)
    {
        movingCube.localPosition = pos;
    }
}
