07 Delayed: The Time Bomb Scenario

📍 Demo Info

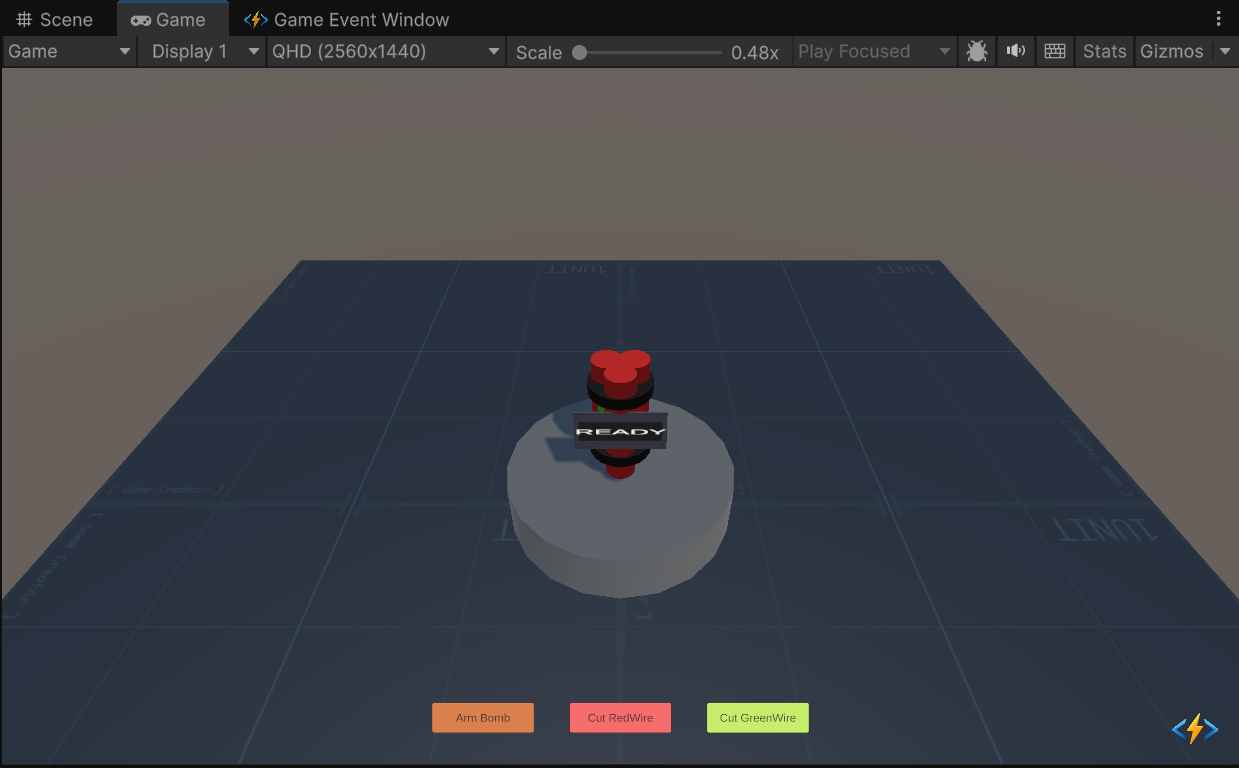

• Scene Preview



• Scene Path

  Assets/TinyGiants/GameEventSystem/Demo/07_DelayedEvent/07_DelayedEvent.unity

  Goal

  To demonstrate the Scheduling System. You will learn how to configure an event to fire after a delay, and critically, how to Cancel that pending event using code logic before it executes.

---

📝 Description

Adding the Dimension of Time Standard events fire instantly (Raise() -> Execute()). Delayed events introduce a gap: Raise() -> [Wait State] -> Execute().

The Scenario: Defuse or Boom This demo simulates a classic "Cut the Wire" mini-game.

1. Arming Phase: Clicking "ARM BOMB" raises the ExplodeEvent.
   • BUT, the event is configured with a 5.0s Action Delay.
   • The signal is now "in flight" (Pending).
2. Defusing Phase: You have 5 seconds to cut the correct wire.
   • Safe Wire: Calls event.Cancel(). The pending explosion is removed from the queue.
   • Trap Wire: Does nothing. The clock keeps ticking.
   • Timeout: If time runs out, the pending event executes -> BOOM.

(Note: The Safe Wire is randomized every time you arm the bomb!)

---

🛠️ Scene Setup

The scene is constructed to visualize tension:

1. The Bomb: A cylinder with a ticking timer text (00.000).
2. Wires:
   • 🟥 Red Wire Button: Triggers the "Cut Red" logic.
   • 🟩 Green Wire Button: Triggers the "Cut Green" logic.
3. Arm Button: Resets the state and starts the event.
4. Feedback: Sparks particle system and tick/explosion audio.

---

🎮 How to Test

1. Enter Play Mode.
2. Click "ARM BOMB":
   • Listen: The ticking sound starts.
   • Watch: The timer counts down from 5.000.
   • Console: Note the log [Game Logic] Bomb Armed! The SAFE wire is: ... (You can cheat by reading this!).
3. Experiment 1: Let it Explode:
   • Do nothing. Wait for the timer to hit 0.000.
   • Result: The bomb explodes physically. The event OnExplode executed successfully.
4. Experiment 2: Cut the Wrong Wire:
   • Click "ARM BOMB" again.
   • Click the wire that is NOT the safe one (e.g., if Log says Red is safe, cut Green).
   • Result: Nothing happens. The timer continues. BOOM.
5. Experiment 3: Defuse Successfully:
   • Click "ARM BOMB" again.
   • Click the SAFE wire.
   • Result: Timer stops. Text says "DEFUSED". The explosion never happens.

---

🔑 Key Configuration

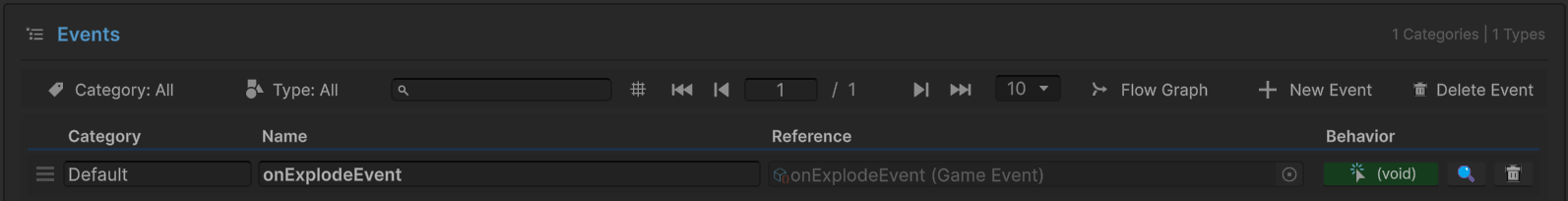

1. Event Definition (Editor)

We use a standard Void event onExplodeEvent.

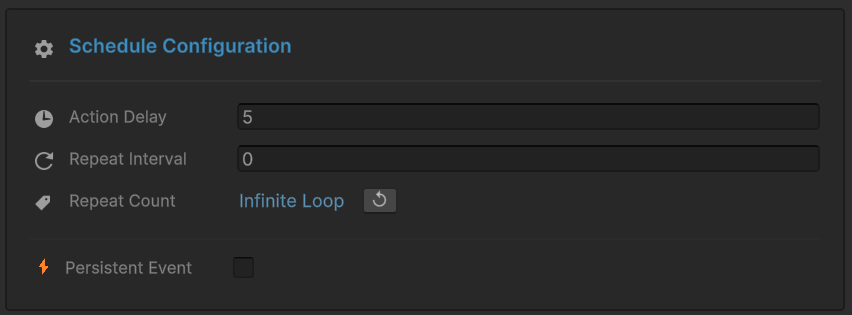

2. Delay Configuration (Behavior)

This is the critical step. Open the Behavior Window for onExplodeEvent. Observe the Schedule Configuration section at the bottom:

• Action Delay: Set to 5 (Seconds).
• This tells the system: "When Raise() is called, wait 5 seconds before invoking the listeners."

3. Receiver Binding

The OnExplode method is bound normally. It contains the explosion logic.

• Note: The Receiver doesn't know about the delay. It just reacts when the event finally arrives.

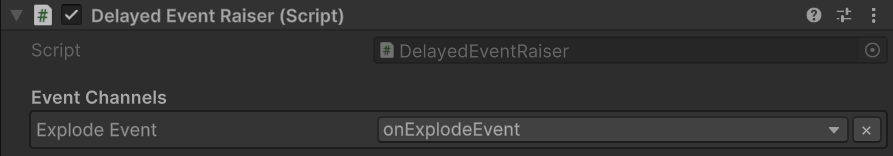

4. Raiser Assignment (Inspector)

The Raiser script needs a reference to the event to both Raise() it and Cancel() it.

---

💻 Code Walkthrough

1. The Sender (DelayedEventRaiser.cs)

This script manages the game state and interacts with the event system's scheduler.

public class DelayedEventRaiser : MonoBehaviour
{
    [GameEventDropdown] public GameEvent explodeEvent;

    private string _safeWireColor; // Randomized at runtime

    public void ArmBomb()
    {
        // 1. Randomize the puzzle
        _safeWireColor = Random.value > 0.5f ? "Red" : "Green";

        // 2. Raise the Event
        // Because "Action Delay" is set to 5s in the Inspector,
        // this call puts the event into a "Pending" state.
        // It will NOT fire immediately.
        explodeEvent.Raise();

        // Start visual countdown (Cosmetic only - the real timer is inside the Event System)
        StartCoroutine(CountdownRoutine());
    }

    public void CutRedWire() => ProcessCut("Red");
    public void CutGreenWire() => ProcessCut("Green");

    private void ProcessCut(string color)
    {
        // Logic Check: Did we cut the right wire?
        if (color == _safeWireColor)
        {
            // 3. THE CRITICAL API CALL
            // .Cancel() stops the pending event execution.
            // The 5-second timer inside the Event Manager is destroyed.
            // The Receiver's OnExplode() will NEVER be called.
            explodeEvent.Cancel();

            DisarmSuccess();
        }
        else
        {
            Debug.LogWarning("Wrong wire! The clock is still ticking...");
        }
    }
}

2. The Receiver (DelayedEventReceiver.cs)

The receiver logic is purely reactive. It handles the physical aftermath.

public class DelayedEventReceiver : MonoBehaviour
{
    [SerializeField] private Rigidbody bombRigidbody;
    [SerializeField] private ParticleSystem explosionVFX;

    // This method is ONLY called if the timer reaches 0.
    // If Cancel() is called at 0.1s, this method never runs.
    public void OnExplode()
    {
        Debug.Log("BOOM! The event executed.");

        // Visuals
        if (explosionVFX) Instantiate(explosionVFX, ...);

        // Physics
        if (bombRigidbody)
        {
            bombRigidbody.isKinematic = false;
            bombRigidbody.AddExplosionForce(2000f, ...);
        }

        // Camera Shake
        StartCoroutine(ShakeCamera(0.5f, 0.8f));
    }
}

Architecture Insight

Notice how we separated the Visual Timer (in Raiser) from the Logic Timer (in GameEvent).

• The CountdownRoutine in the Raiser is purely for updating the UI text.
• The actual "Boom" logic is handled reliably by the Event System's internal scheduler. Even if the UI crashes, the bomb would still explode!
